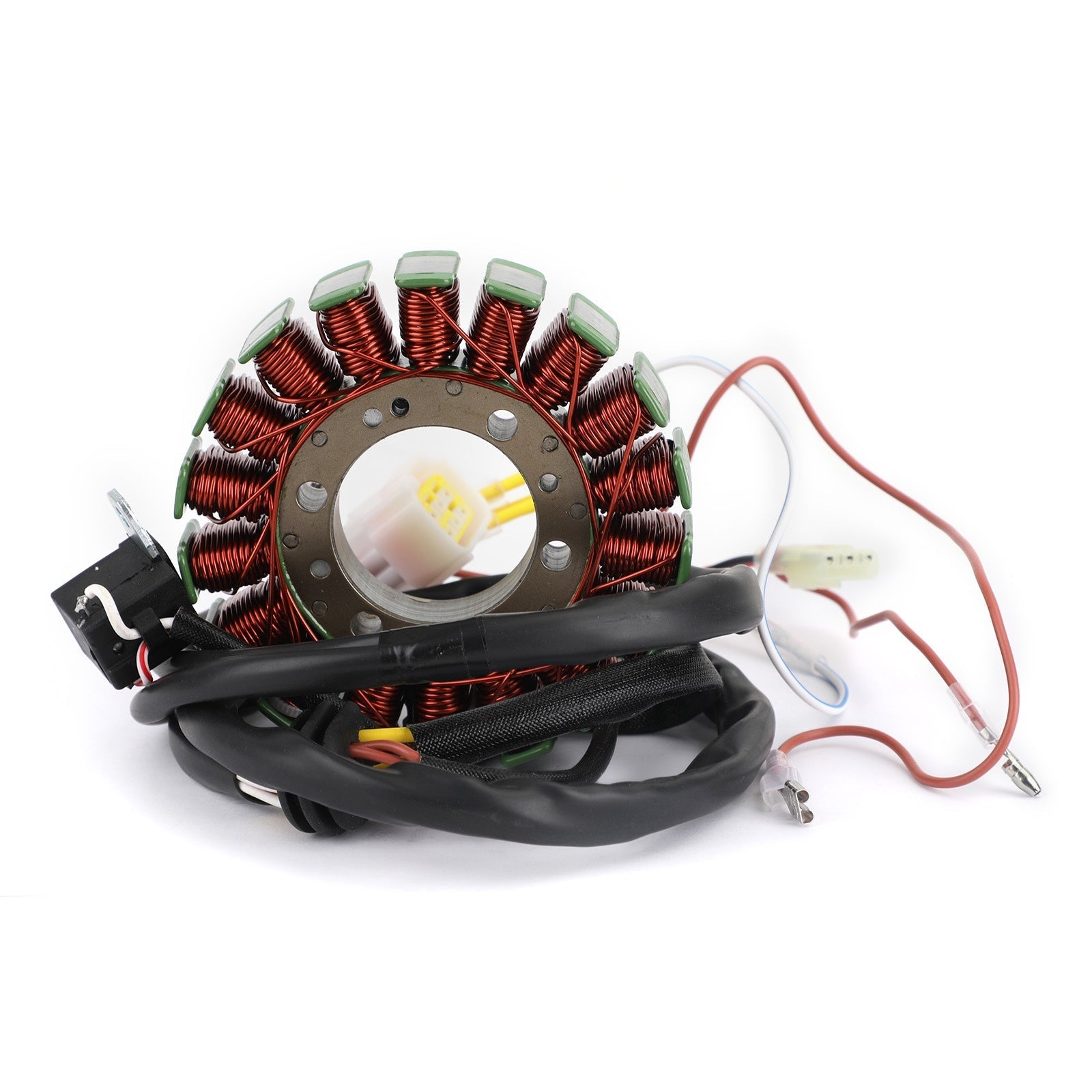

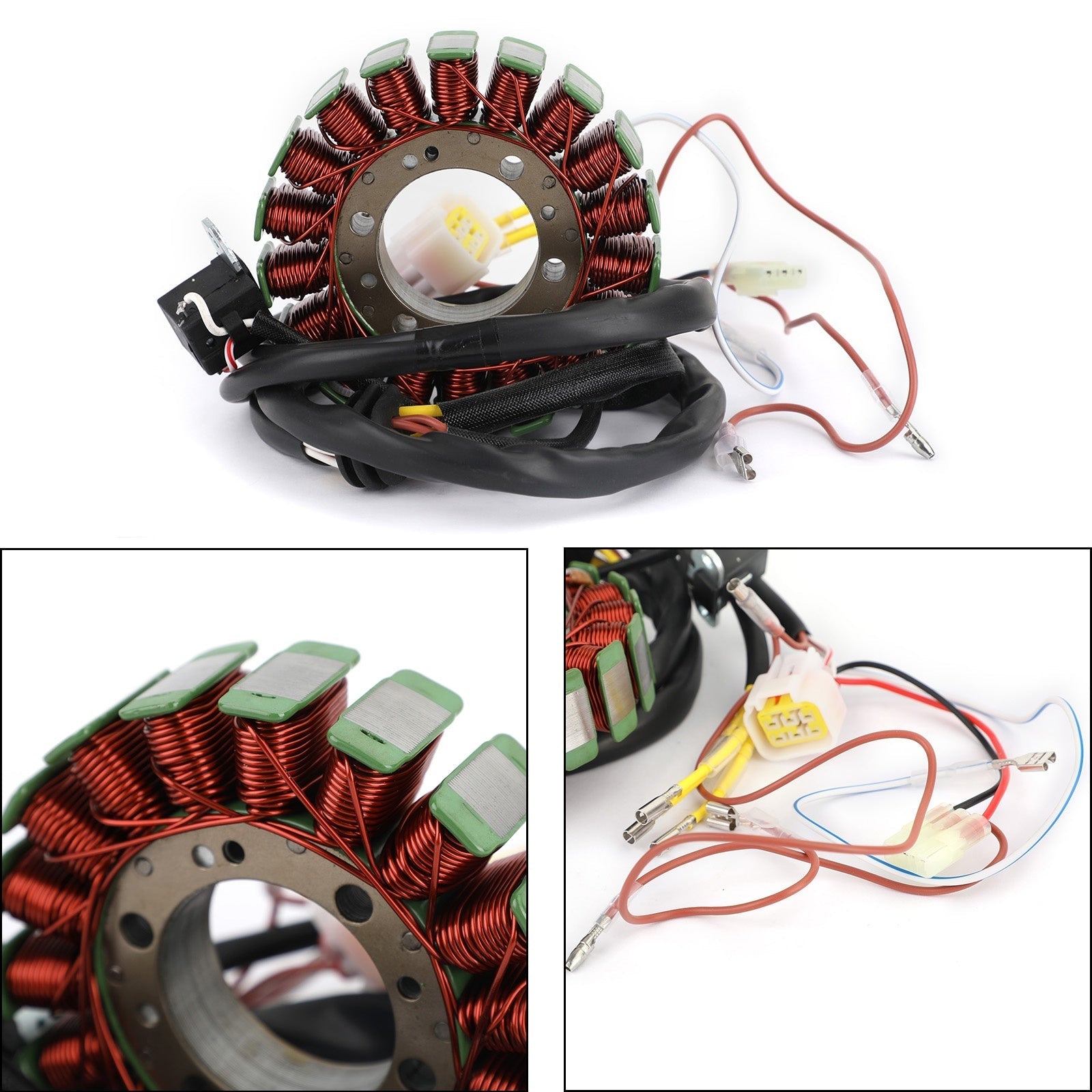

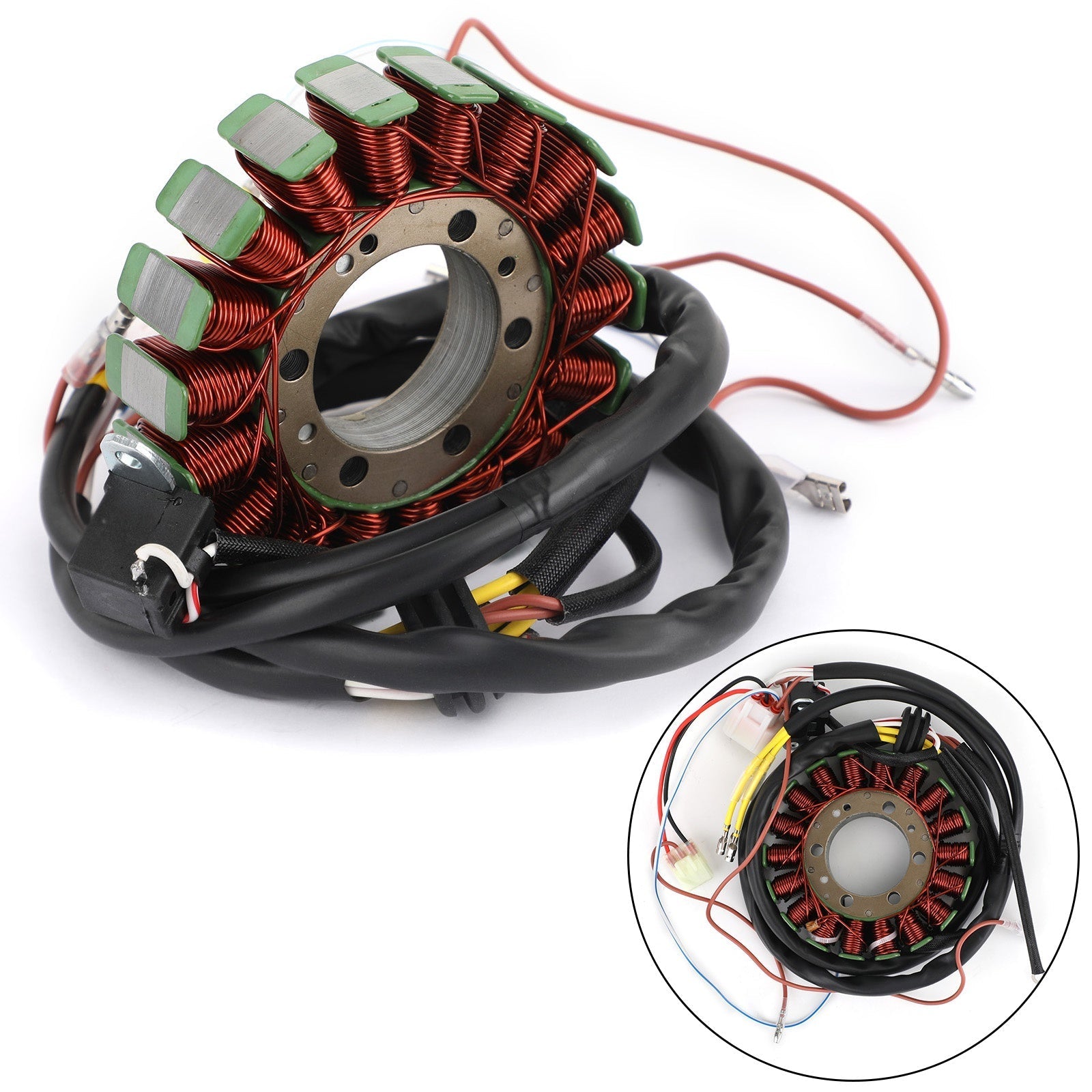

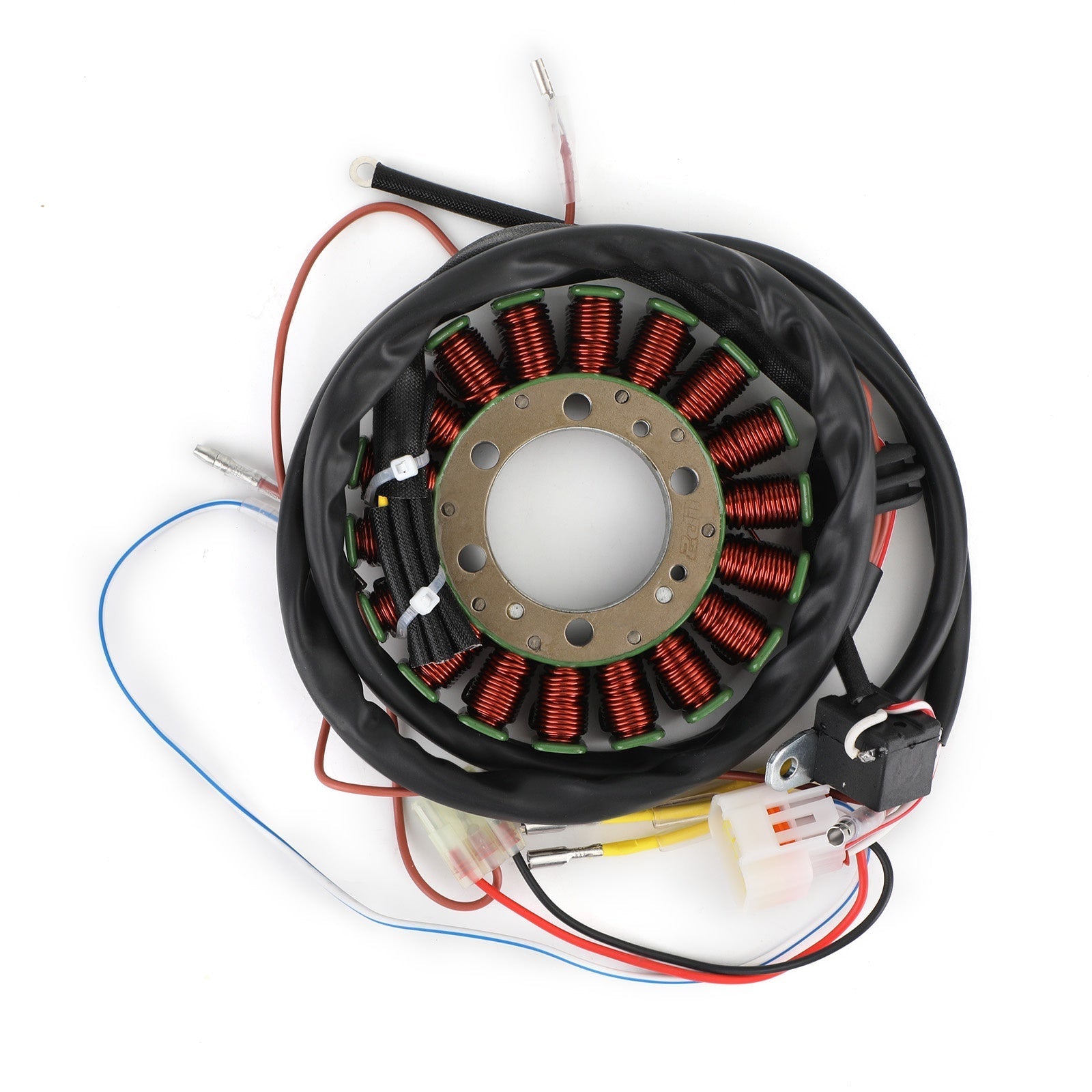

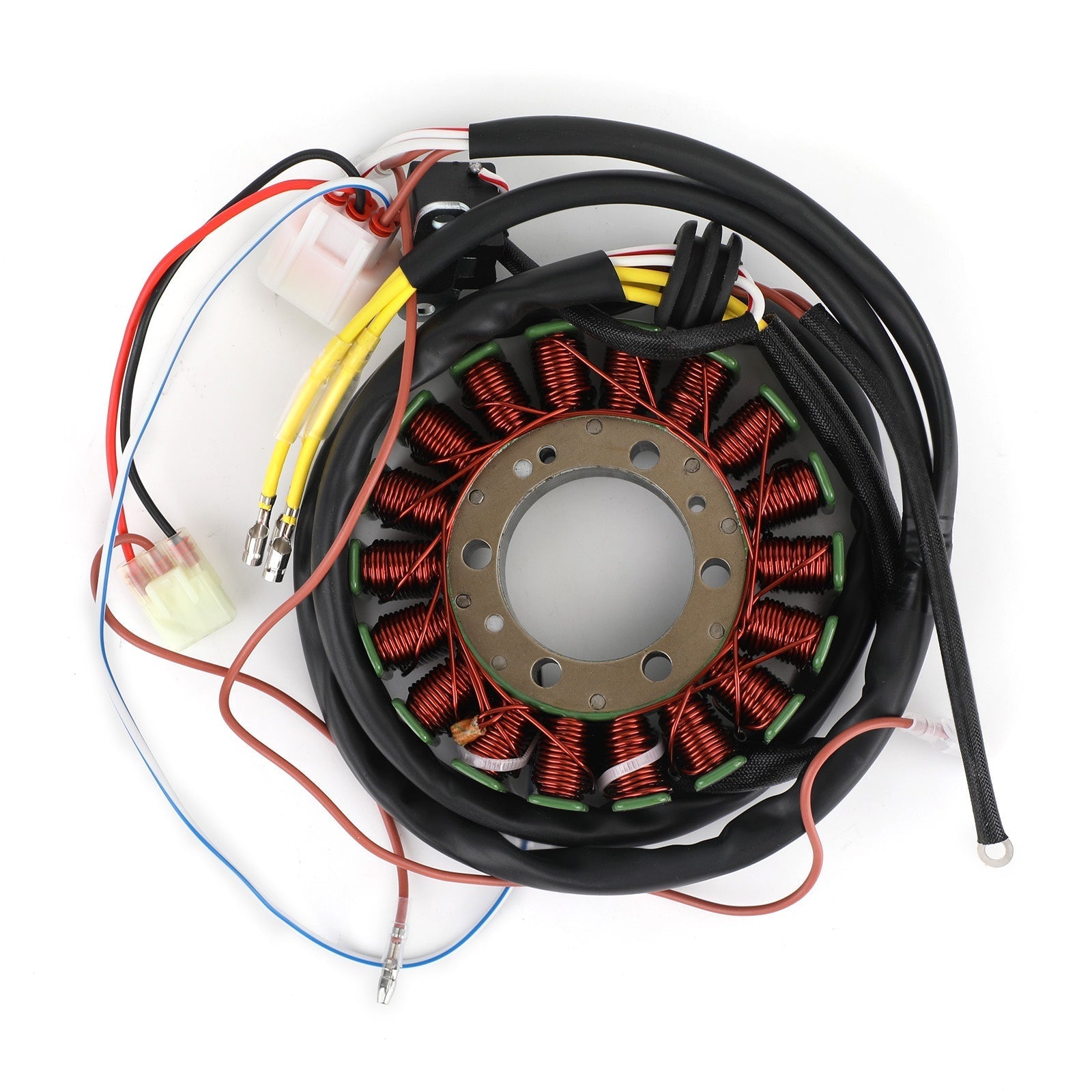

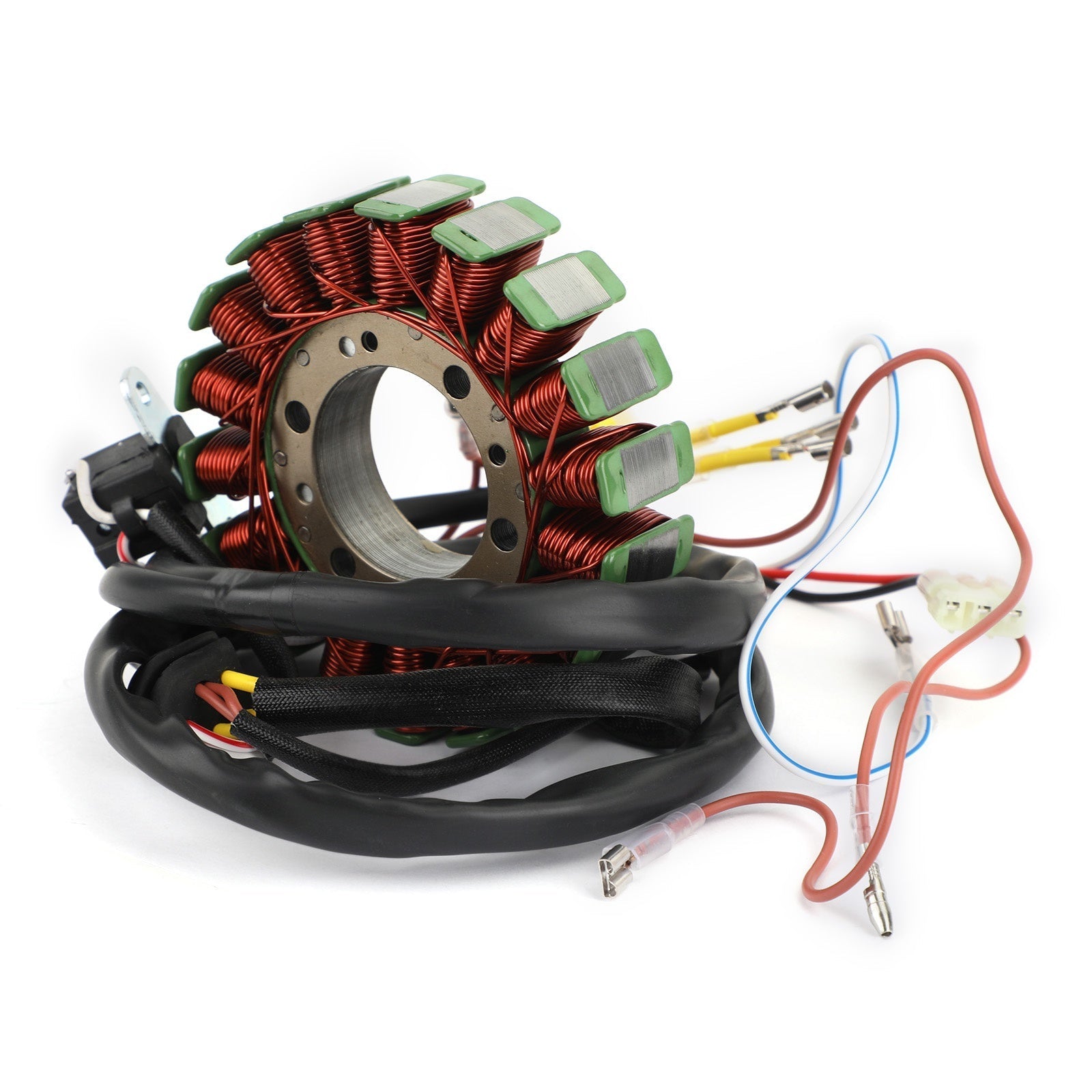

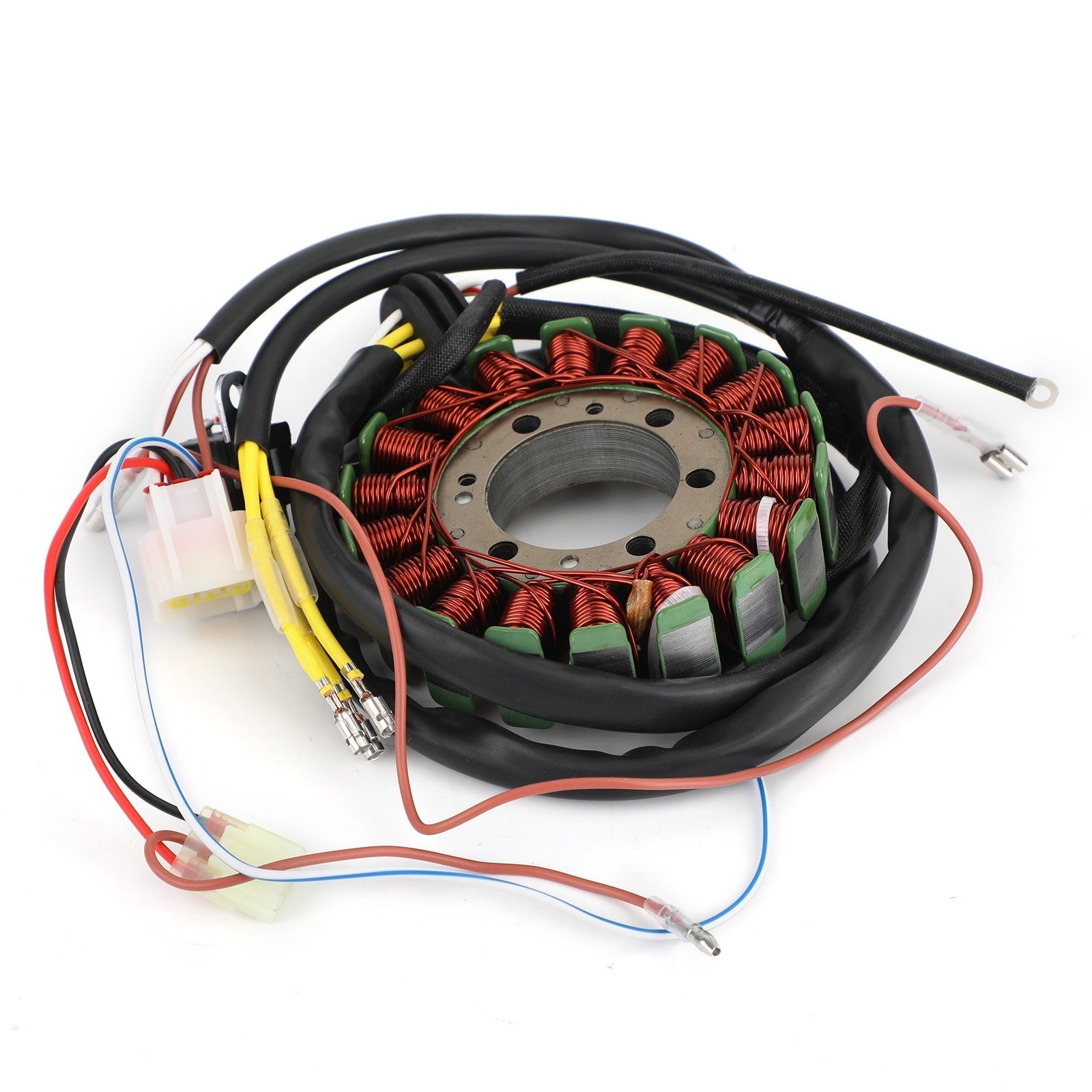

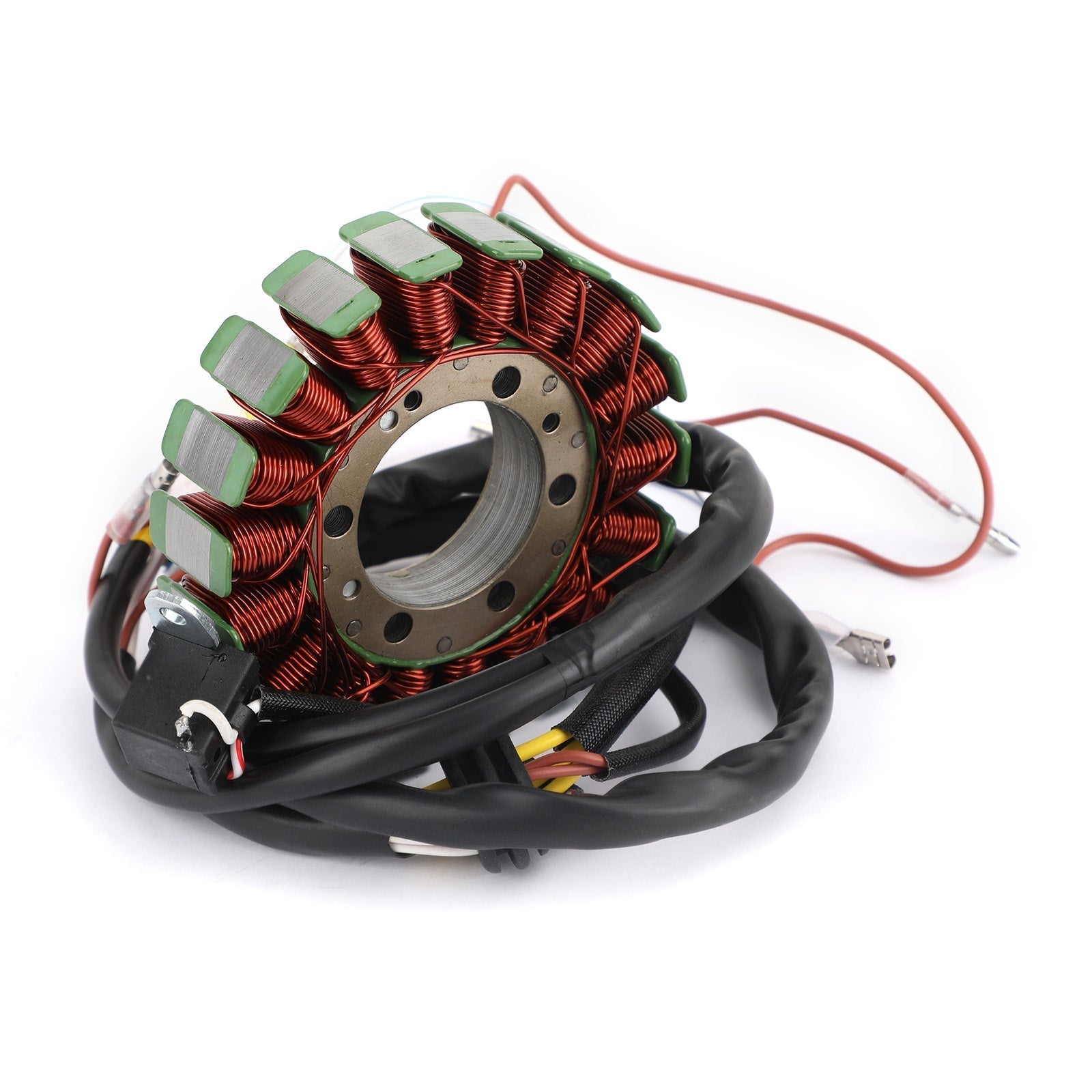

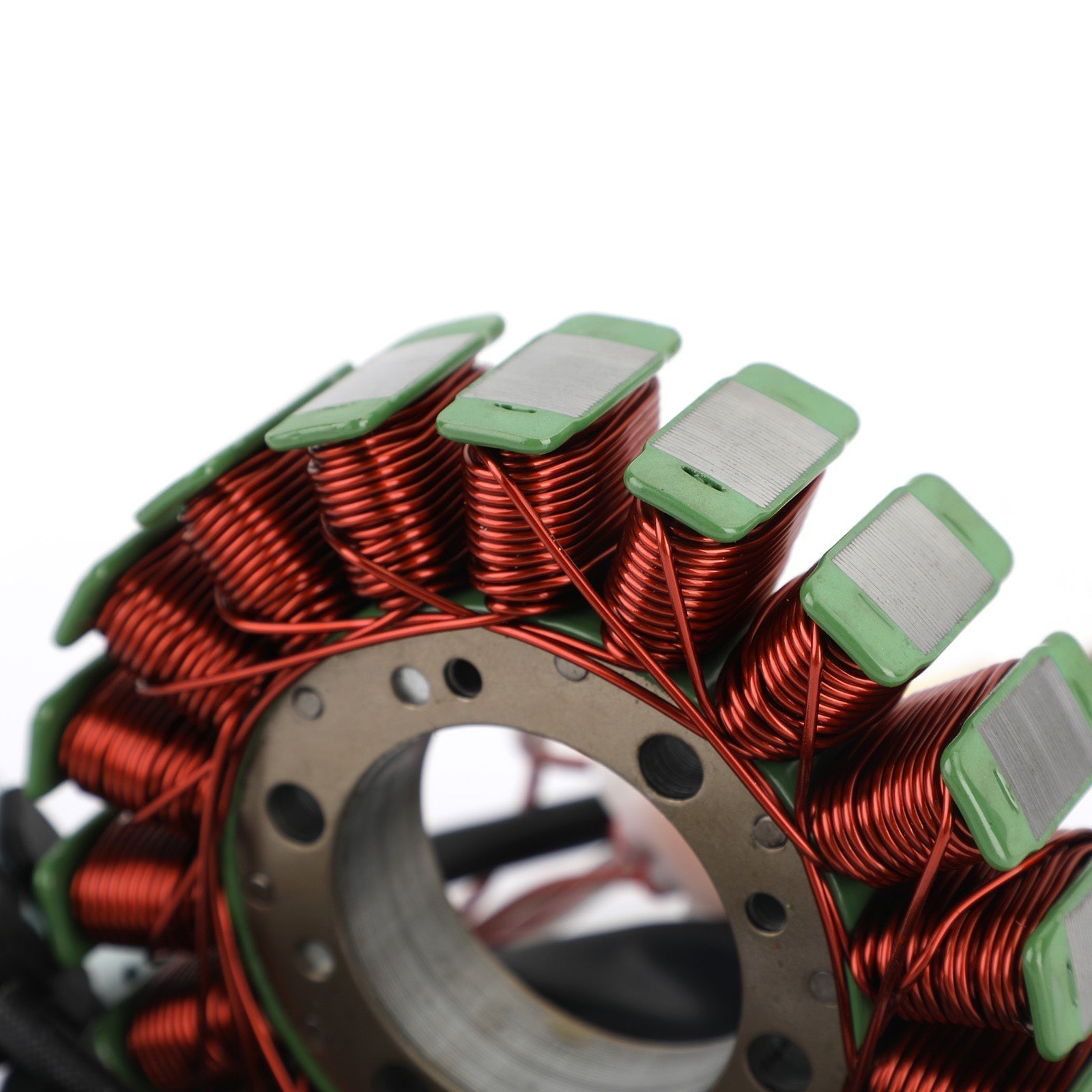

Alternator Magneto Stator Fit for Ranger 500 2X4 4x4 Carb Israel 05-2009 Generic

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

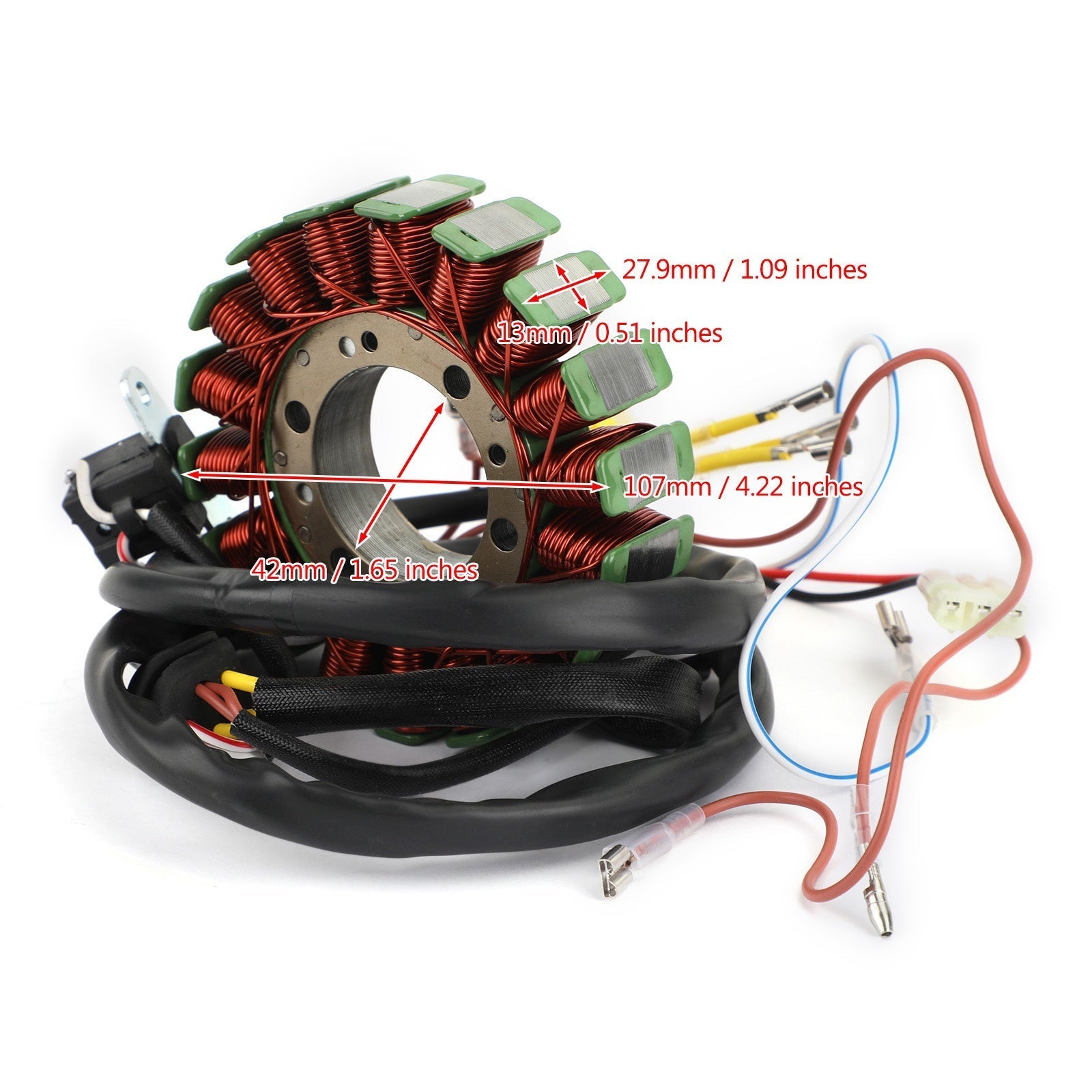

Dimensions:
Interior diameter : 42 mm / 1.65 inches
Exterior diameter : 107 mm / 4.22 inches
Pole's Thickness : 27.9 mm / 1.09 inches
Pole's Width : 13 mm / 0.51 inches

Other Specifications :
Number of wires: 7
Number of pins: 17
Number of plugs: 10
Number of fixation holes: 5
Number of poles: 18

PART NUMBER(S): 3089579

Fitments:
Fit for Polaris Ranger 500 2X4 2008
Fit for Polaris Ranger 500 2X4 CARB 2009
Fit for Polaris Ranger 500 2X4 CARB ISRAEL 2007-2008
Fit for Polaris Ranger 500 2X4/4X4/6X6 2005
Fit for Polaris Ranger 500 2X4/4X4 2006-2007

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper wingdings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

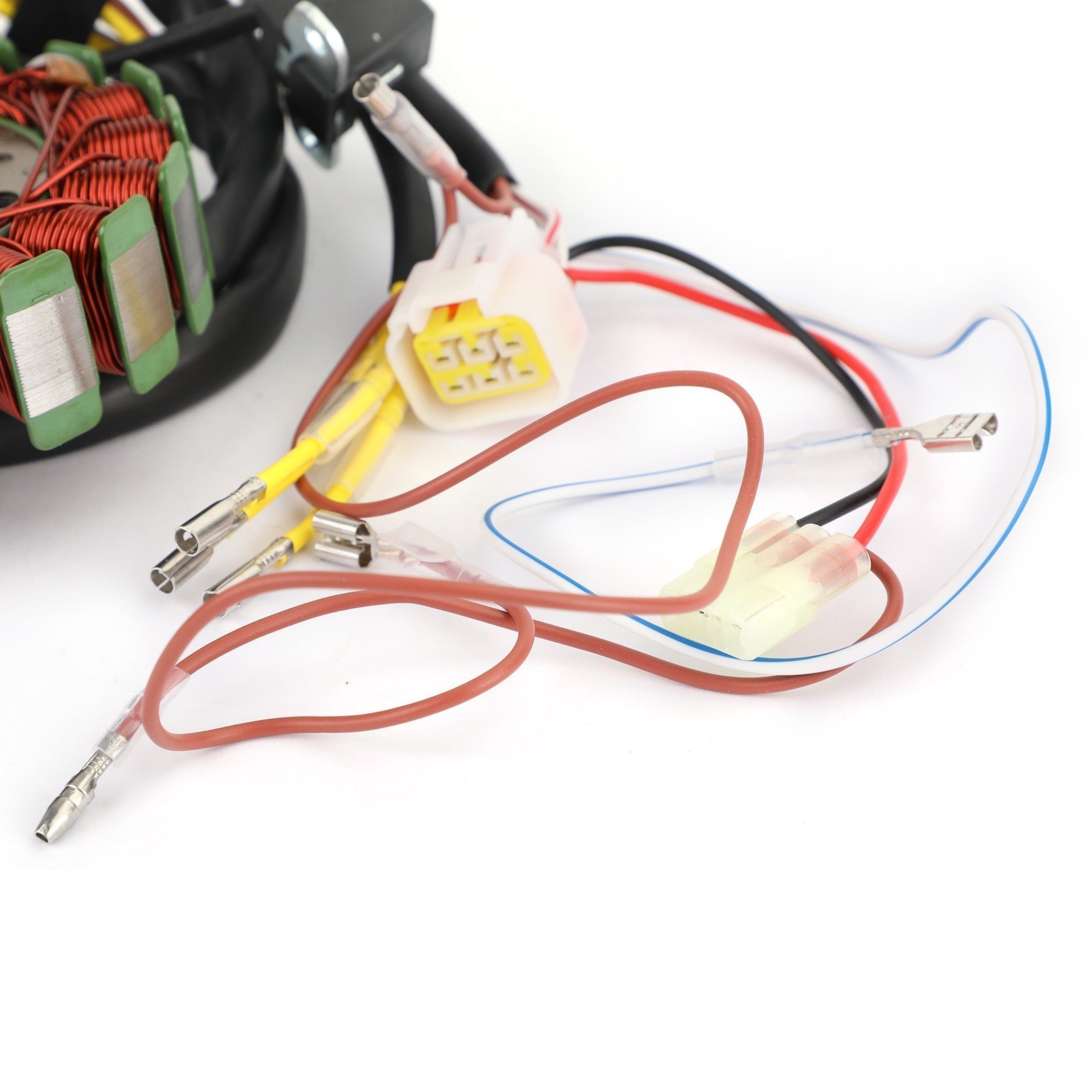

Connector included.
All products shipped are tested.

Package Included:
1 x Generator Stator Coil
